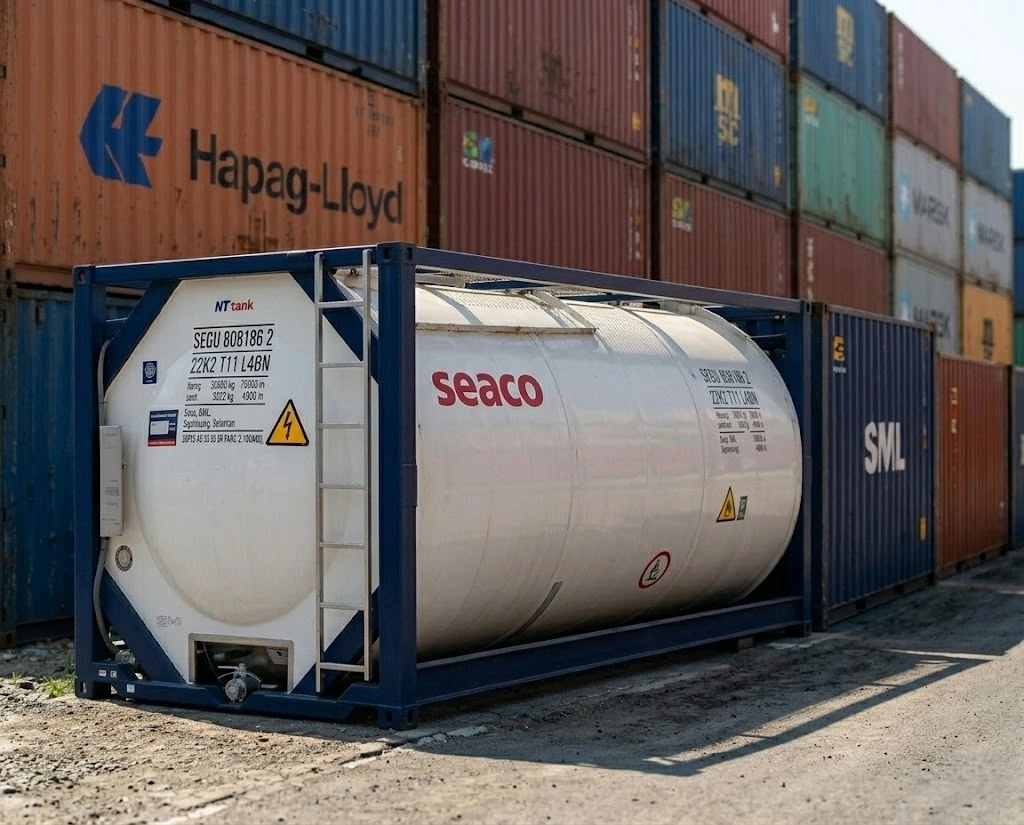

Танк-контейнер Т7 (tank-container T7) — is a standardized ISO container designed for the storage and multimodal transport of liquid cargoes, including food products, petrochemical products, and certain types of hazardous substances, by sea, rail, and road, at an operating pressure of 1.77–2.65 bar.
The T7 tank allows the transport and storage of vegetable oils, alcohols, juices, molasses, syrups, diesel fuel, gasoline, solvents, as well as some chemical reagents and liquid hazardous goods, provided they comply with the requirements of ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road) and the container's technical specifications.
Technical characteristics of T7 tank containers
Structurally, the T7 tank container consists of an AISI 316 stainless steel tank with a thickness of 4.8 mm (in terms of strength characteristics, equivalent to approximately 6 mm of carbon steel), rigidly fixed at the ends within a rectangular ISO standard frame (20 ft). Liquids are loaded through a top manhole with a diameter of 500 mm, and unloaded through a bottom discharge with a three-stage protection system.
A service platform and ladder are provided for access to pressure gauges, safety valves, and other equipment.
If necessary, the container can be equipped with thermal insulation based on mineral or fiberglass materials and an external protective covering.
Table. Technical characteristics of T7 tank containers
| Container characteristics | Type 20' tank container ISO (1CC) UN T7 |
|---|---|
| External dimensions | |
| Length, mm | 6,058 |
| Width, mm | 2,438 |
| Height, mm | 2,591 |
| Specifications | |
| Useful volume, l | 21,000-26,000 |
| Tare weight, kg | 3,520-3,700 |
| Maximum gross weight, kg | 36,000 |
| Payload, kg | 32,300-32,480 |
For the transport of viscous and temperature-dependent liquids, the ISO Tank T7 can be additionally equipped with a steam or electric heating system.
T7 tank container: advantages
The T7 container is most in demand among logistics operators, industrial enterprises, chemical exporters, and companies handling dangerous goods.
Advantages of the T7 tank container:
- tightness and safety of liquid cargo transport;
- multimodal transport without the need for transshipment;
- durability with regular diagnostics and maintenance;
- compliance with international ISO standards;
- unloading convenience;
- resistance to corrosion and aggressive environments;
- possibility of additional equipping with heating and thermal insulation systems;
- reduction of logistics and maintenance costs.
For more standard tasks of transporting liquid products with lower requirements for operating pressure, an alternative option may be considered — T11 tank container, which is often used as a more versatile and economical solution.
Why buy a T7 tank container from GCS?
Global Container Service offers new and used T7 tank containers for sale with a full set of documents and the possibility of technical support.
Why choose GCS:
- official dealer and supplier of container equipment;
- certified container depot in Odesa for servicing of any complexity;
- possibility of upgrading tank containers according to the conditions of transport and storage of a specific product;
- inspection and preparation of containers for CSC certification under the supervision of accredited inspectors.
In addition to tank containers, GCS offers solutions for the transport and storage of specialized cargo, including reefer containers and special containers.
