The T10 tank container is a standardized ISO container designed for temporary storage and intermodal transportation of liquid bulk cargoes, including low-hazard and certain categories of hazardous liquids, in accordance with UN T10 requirements.
T10 tank containers are in demand by chemical and agricultural enterprises, logistics operators, industrial fluid manufacturers, and companies focused on the export of bulk liquid products.
Technical specifications of T10 tank containers

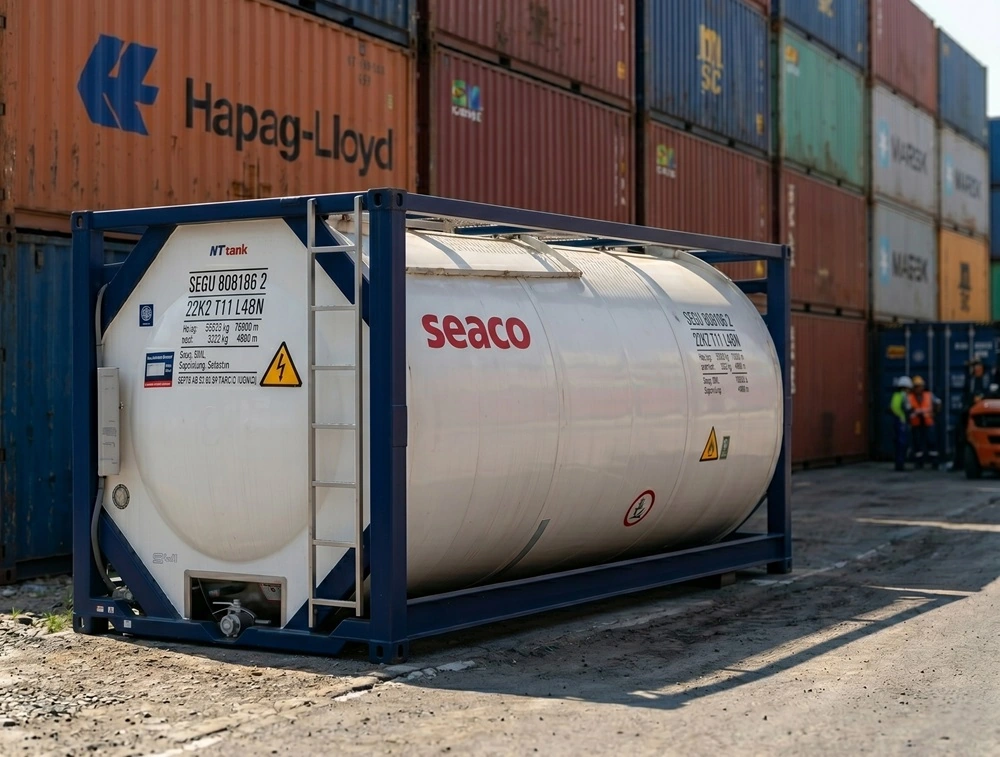

The ISO Tank T10 is structurally a welded pressure vessel mounted in a robust 20-foot ISO-standard frame. The tank is made of alloyed stainless steel AISI316 and consists of a cylindrical shell and two elliptical heads. Welded structures of vertical posts, cross beams, and rings are provided at the frame ends, ensuring reliable fixation of the tank inside the frame.
Product loading is carried out through top manholes about 500 mm in diameter. Unloading is performed under pressure through a top discharge valve. One of the design features of the T10 container is the absence of bottom drain holes, which reduces the risk of leaks during the transport of certain product categories. Pressure relief valves are provided for protection against excess pressure.
Table. Technical specifications of T10 tank containers
| Container specifications | Type 20` tank container ISO (1CC) UN T10 |
|---|---|
| External dimensions | |
| Length, mm | 6,058 |
| Width, mm | 2,438 |
| Height, mm | 2,591 |
| Characteristics | |
| Usable volume, l | 21,000–26,000 |
| Tare weight, kg | 3,520–3,700 |
| Maximum gross weight, kg | 36,000 |
| Maximum payload, kg | 32,300–32,480 |
If necessary, the tank container can be additionally equipped with a steam or electric heating system.
T10 tank container: advantages
Tank T10 tanks comply with ISO and ADR safety standards (European Agreement concerning the International Carriage of Dangerous Goods by Road) and have several advantages:
- hermetic design — minimizing leakage risks and preserving product properties throughout the entire route;
- reliable protection of the cargo during transportation;
- possibility of multimodal logistics by road, rail, and sea transport;
- resistance to mechanical stress and corrosion;
- possibility of modernization according to the specifics of a particular product;
- long service life — with regular maintenance, the T10 tank can last up to 20-25 years.
Suitable for transportation are food-grade liquids and concentrates (with appropriate container preparation), cosmetic raw materials, industrial oils, liquid polymers, adhesive compounds, resins, chemical reagents, cleaning and disinfecting compounds, and industrial liquid raw materials.
Why buy a T10 tank container from GCS?
Global Container Service offers new and used T10 containers with confirmed technical condition and a full set of documents.
Why choose GCS:
- official dealer of global manufacturers and supplier of tank containers in Ukraine;
- own certified terminal in Odesa for carrying out service and repair works of any complexity;
- possibility of CSC (Container Safety Convention) certification with the issuance of a certificate for the Tank T10;
- rental and buyback services for tank containers are available.
Upon client request, modernization of tank containers can be performed, including replacement of fittings, updating connection systems and safety components without making changes to the basic design of the tank.
